STP25NM50N Datasheet, Mosfet, STMicroelectronics

STP25NM50N Features

  • Mosfet Type STB25NM50N STB25NM50N-1 STF25NM50N STP25NM50N STW25NM50N VDSS (@Tjmax) 550V 550V 550V 550V 550V RDS(on) <0.140Ω <0.140Ω <0.140Ω <0.140Ω <0.140Ω ID 3 3 22A 22A 22A(1) 22A 22A 1 2

PDF File Details

Part number:

STP25NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

587.99kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This series of devices is realized with the second generation of MDmesh™ Technology. This revolutionary MOSFET associates a new verti

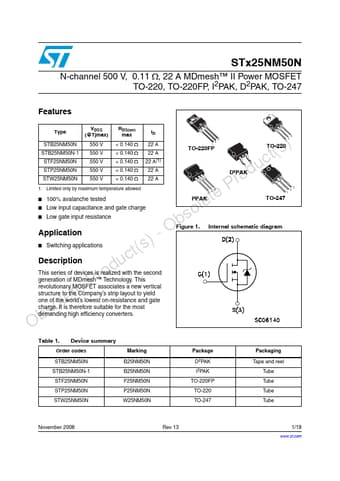

Datasheet Preview: STP25NM50N 📥 Download PDF (587.99kb)
Page 2 of STP25NM50N Page 3 of STP25NM50N

STP25NM50N Application

  • Applications
  • Switching application Order codes Part number STB25NM50N STB25NM50N-1 STF25NM50N STP25NM50N STW25NM50N Marking B25NM50N B25
