STP80N900K6 - N-Channel Power MOSFET

STMicroelectronics

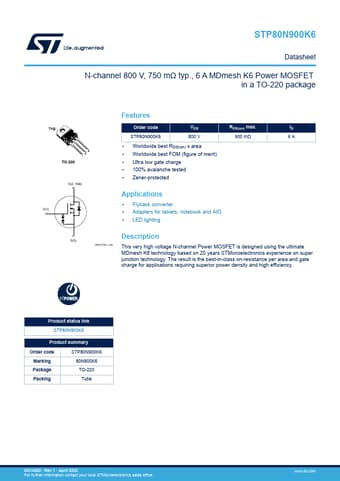

STP80N900K6 Datasheet Preview — Preview of STP80N900K6 PDF

Datasheet Details

Part number	STP80N900K6
Manufacturer	STMicroelectronics ↗
File Size	247.14 KB
Description	N-Channel Power MOSFET
Datasheet	STP80N900K6-STMicroelectronics.pdf

STP80N900K6 Product details

Description

S(3) AM01476v1_tab This very high voltage N-channel Power MOSFET is designed using the ultimate MDmesh K6 technology based on 20 years STMicroelectronics experience on super junction technology.The result is the best-in-class on-resistance per area and gate charge for applications requiring superior power density and high efficiency.Product status link STP80N900K6 Product summary Order code STP80N900K6 Marking 80N900K6 Package TO-220 Packing Tube DS14282 - Rev 1 - April 2023 For fur

Features

TAB Order code VDS RDS(on) max. ID STP80N900K6 800 V 900 mΩ 6A TO-220 1 23 D(2, TAB).
Worldwide best RDS(on) x area.
Worldwide best FOM (figure of merit).
Ultra low gate charge.
100% avalanche tested.
Zener-protected.
