STPC, PC Compatible Embeded Microprocessor

GENERAL DESCRIPTION At the heart of the STPC Consumer is an advanced processor block, dubbed the 5ST86.

The 5ST86 includes a powerful x86 processor core along with a 64-bit DRAM controller, advanced 64bit accelerated graphics and video controller, a high speed PCI local-bus controller and Indust

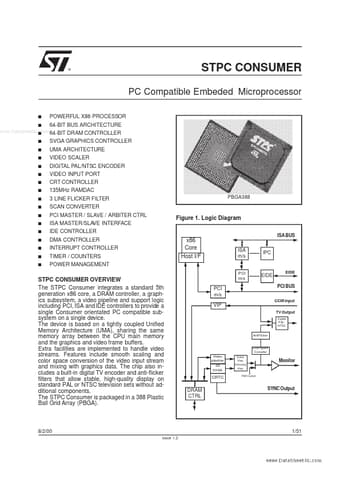

® STPC CONSUMER PC Compatible Embeded Microprocessor s s POWERFUL X86 PROCESSOR 64-BIT BUS ARCHITECTURE SVGA GRAPHICS CONTROLLER UMA ARCHITECTURE VIDEO SCALER DIGITAL PAL/NTSC ENCODER VIDEO INPUT PORT CRT CONTROLLER 135MHz RAMDAC 3 LINE FLICKER FILTER SCAN CONVERTER PCI MASTER / SLAVE / ARBITER CTRL ISA MASTER/SLAVE INTERFACE IDE CONTROLLER DMA CONTROLLER INTERRUPT CONTROLLER TIMER / COUNTERS POWER MANAGEMENT PCI m/s www.DataSheet4U.com s 64-BIT DRAM CONTROLLER s s s s s s s s s s s s s s s

STPC Features

* include smooth scaling and color space conversion of the video input stream and mixing with graphics data. The chip also includes a built-in digital TV encoder and anti-flicker filters that allow stable, high-quality display on standard PAL or NTSC television sets without additional components. The
