STPC, STPC4 Datasheet - STMicroelectronics

STPC4_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPC, STPC4. Please refer to the document for exact specifications by model.

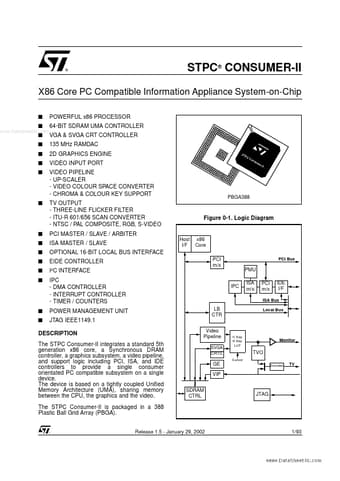

STPC Datasheet Preview Page 2 STPC Datasheet Preview Page 3

Datasheet Details

Part number:

STPC, STPC4

Manufacturer:

STMicroelectronics ↗

File Size:

1.06 MB

Description:

X86 core pc compatible information appliance system-on-chip.

Note:

This datasheet PDF includes multiple part numbers: STPC, STPC4.
Please refer to the document for exact specifications by model.

STPC, STPC4, X86 Core PC Compatible Information Appliance System-on-Chip

The STPC Consumer-II integrates a standard 5th generation x86 core, a Synchronous DRAM controller, a graphics subsystem, a video pipeline, and support logic including PCI, ISA, and IDE controllers to provide a single consumer orientated PC compatible subsystem on a single device.

The device is based

STPC® CONSUMER-II X86 Core PC Compatible Information Appliance System-on-Chip s s www.DataSheet4U.com POWERFUL x86 PROCESSOR 64-BIT SDRAM UMA CONTROLLER VGA & SVGA CRT CONTROLLER 135 MHz RAMDAC 2D GRAPHICS ENGINE VIDEO INPUT PORT VIDEO PIPELINE - UP-SCALER - VIDEO COLOUR SPACE CONVERTER - CHROMA & COLOUR KEY SUPPORT TV OUTPUT - THREE-LINE FLICKER FILTER - ITU-R 601/656 SCAN CONVERTER - NTSC / PAL COMPOSITE, RGB, S-VIDEO PCI MASTER / SLAVE / ARBITER ISA MASTER / SLAVE OPTIONAL 16-BIT LOCAL BUS I
