STPD01

Programmable buck converter

STMicroelectronics

STPD01 Features

* Input voltage range 6.0 V to 26.4 V

* Internal power MOS synch rectification

* Internal compensation

* I2C bus controlled

* Vout settings: 3 V to 20 V with 20 mV (min.) steps

* Slew rate control (max. 30 mV/us)

* Cable drop compensation

STPD01 General Description

The STPD01 is a programmable synchronous buck converter suitable to provide power supply in applications following USB power delivery specifications. The device provides those voltages required by USB power delivery systems as stated in USB PD 3.0 spec up to 60 W output power (20 V, 3 A). The differ.

STPD01 Datasheet (3.09 MB)

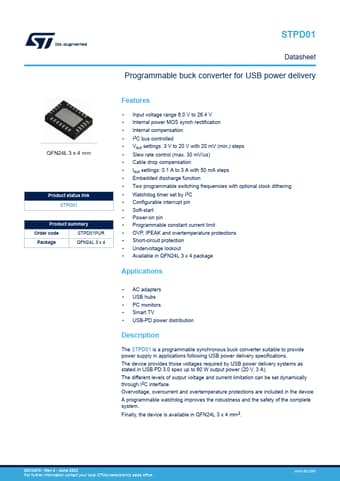

STPD01 Datasheet Preview — Preview of STPD01 PDF

Datasheet Details

Part number:

STPD01

Manufacturer:

STMicroelectronics ↗

File Size:

3.09 MB

Description:

Programmable buck converter.
STPD01 Datasheet Programmable buck converter for USB power delivery Product status link STPD01 Product summary Order code STPD01PUR Package QFN2.
