STPLED525 Datasheet - STMicroelectronics

STPLED525 N-channel Power MOSFET

These Power MOSFETs boast extremely low onresistance and very good dv/dt capability, rendering them suitable for buck-boost and flyback topologies. Order codes STDLED525 STFILED525 STPLED525 STULED525 Table 1. Device summary Marking Package LED525 DPAK I2PAKFP (TO-281) TO-220 IPAK Packaging T.

STPLED525 Features

* TAB Order codes VDS RDS(on) max ID PTOT 3 1 DPAK t(s)TAB roduc3 2 1 te PTO-220 123 I²PAKFP TAB IPAK 3 2 1 oleFigure 1. Internal schematic diagram bsD(2,TAB) ct(s) - OG(1) lete ProduS(3) Obso AM01476v1 STDLED525 STFILED525 STPLED525 STULED525 525 V 1.5 Ω 5.0 A 70 W 25 W 70 W

STPLED525 Datasheet (908.78 KB)

Preview of STPLED525 PDF

Datasheet Details

Part number:

STPLED525

Manufacturer:

STMicroelectronics ↗

File Size:

908.78 KB

Description:

N-channel power mosfet.

📁 Related Datasheet

STPLED624 N-channel Power MOSFET (STMicroelectronics)

STPLED625 N-channel Power MOSFET (STMicroelectronics)

STPLED625H N-channel Power MOSFET (STMicroelectronics)

STPLED656 N-channel Power MOSFET (STMicroelectronics)

STP-42D3018 2-Phase Step Motor (Interinar)

STP03D200 2kV NPN Darlington transistor (STMicroelectronics)

STP04CM05 4-bit constant current power-LED sink driver (STMicroelectronics)

STP04CM596 4-Bit constant current (ST Microelectronics)

STP06N20 N-Channel MOSFET (SamHop Microelectronics)

STP08C596 8-BIT CONSTANT CURRENT LED SINK DRIVER (ST Microelectronics)

TAGS

STPLED525 N-channel Power MOSFET STMicroelectronics

Image Gallery

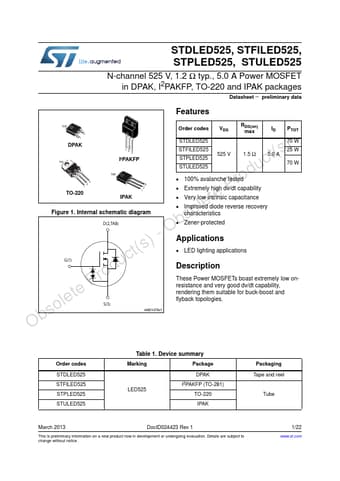

STPLED525 Datasheet Preview Page 2 STPLED525 Datasheet Preview Page 3
