STPLED625H N-channel Power MOSFET

STPLED625H Description

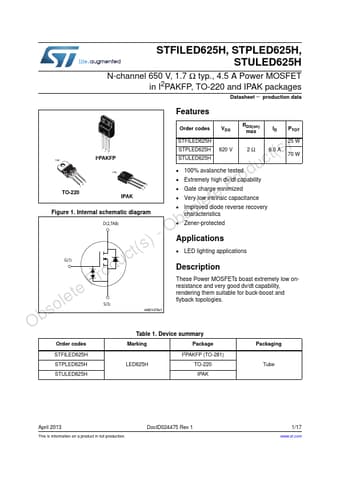

STFILED625H, STPLED625H, STULED625H N-channel 650 V, 1.7 Ω typ., 4.5 A Power MOSFET in I2PAKFP, TO-220 and IPAK packages Datasheet * productio.
These Power MOSFETs boast extremely low onresistance and very good dv/dt capability, rendering them suitable for buck-boost and flyback topologies.

STPLED625H Features

* Order codes VDS RDS(on) max ID PTOT )1 t(s2 3 TAB I²PAKFP roduc3 2 1 te PTO-220 TAB IPAK 3 2 1 oleFigure 1. Internal schematic diagram bsD(2,TAB) ct(s) - OG(1) lete ProduS(3) Obso AM01476v1 STFILED625H 25 W STPLED625H 620 V 2 Ω 6.0 A 70 W STULED625H
* 100% avalanche tested

📥 Download Datasheet
