STPLED624

The STPLED624 is N-channel Power MOSFET designed by STMicroelectronics.

Product Overview

STMicroelectronics

Datasheet Details

Part number	STPLED624
Manufacturer	STMicroelectronics
File Size	828.33 KB
Description	N-channel Power MOSFET
Datasheet	STPLED624-STMicroelectronics.pdf

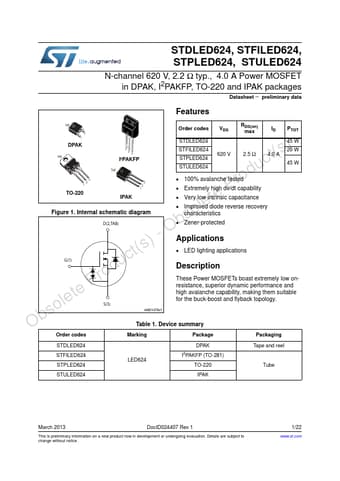

Additional preview pages of the STPLED624 datasheet.

Product details

Description

These Power MOSFETs boast extremely low onresistance, superior dynamic performance and high avalanche capability, making them suitable for the buck-boost and flyback topology.

Features

TAB 3 Order codes VDS RDS(on) max ID PTOT 1 DPAK t(s)TAB roduc3 2 1 te PTO-220 123 I²PAKFP TAB IPAK 3 2 1 oleFigure 1. Internal schematic diagram bsD(2,TAB) STDLED624 STFILED624 STPLED624 STULED624 620 V 2.5 Ω 4.0 A 45 W 20 W 45 W.
100% avalanche tested.
Extremely high dv/dt capability.
Very low intrinsic capacitance.
Improved diode reverse recovery characteristics.
Zener-protected ct(s) - OG(1) olete ProduS(3) AM01476v1.
