STPS20L15G, STPS20L15 Low drop OR-ing power Schottky diode

STPS20L15G Description

STPS20L15 Low drop OR-ing power Schottky diode Datasheet - production data A K K K K A K TO-220AC A NC A NC D²PAK .
Packaged in TO-220AC or D²PAK, this device is especially intended for use as an OR-ing diode in fault tolerant power supply equipments.

STPS20L15G Features

* Very low forward voltage drop for less power dissipation and reduced heatsink size
* Reverse voltage suited to OR-ing of 3 V, 5 V and 12 V rails
* Avalanche capability specified
* ECOPACK®2 compliant component for D²PAK on demand October 2016 DocID5512 Rev 4 This is information

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20L15G, STPS20L15. Please refer to the document for exact specifications by model.

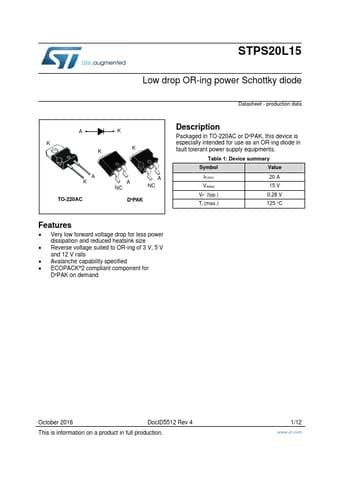

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20L15G, STPS20L15
Manufacturer
STMicroelectronics ↗
File Size
363.55 KB
Datasheet
STPS20L15_STMicroelectronics.pdf
Description
Low drop OR-ing power Schottky diode
Note
This datasheet PDF includes multiple part numbers: STPS20L15G, STPS20L15.
Please refer to the document for exact specifications by model.
