STPSC10H12G2Y-TR Datasheet, Diode, STMicroelectronics

STPSC10H12G2Y-TR Features

  • Diode
  • AEC-Q101 qualified
  • No or negligible reverse recovery
  • Switching behavior independent of temperature
  • Robust high voltage periphery
  • PPAP c

PDF File Details

Part number:

STPSC10H12G2Y-TR

Manufacturer:

STMicroelectronics ↗

File Size:

372.40kb

Download:

📄 Datasheet

Description:

Silicon carbide power schottky diode. This 10 A, 1200 V SiC diode is an ultra-high performance power Schottky diode. It is manufactured using a silicon carbide substrate.

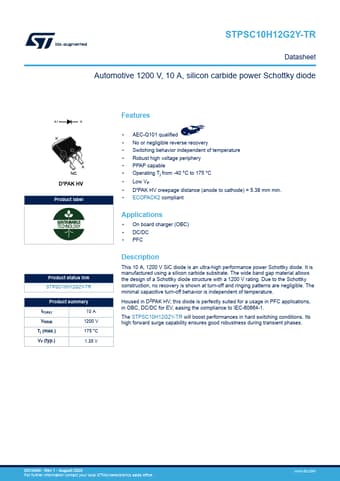

Datasheet Preview: STPSC10H12G2Y-TR 📥 Download PDF (372.40kb)
Page 2 of STPSC10H12G2Y-TR Page 3 of STPSC10H12G2Y-TR

STPSC10H12G2Y-TR Application

  • Applications
  • On board charger (OBC)
  • DC/DC
  • PFC Description This 10 A, 1200 V SiC diode is an ultra-high performance pow
