STTH4R02 Datasheet, Diode, STMicroelectronics

STTH4R02 Features

  • Diode
  • Negligible switching losses
  • High junction temperature
  • Very low conduction losses
  • Low forward and reverse recovery times
  • ECOPACK®2 compl

PDF File Details

Part number:

STTH4R02

Manufacturer:

STMicroelectronics ↗

File Size:

505.25kb

Download:

📄 Datasheet

Description:

Ultrafast recovery diode. The STTH4R02 uses ST's new 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor

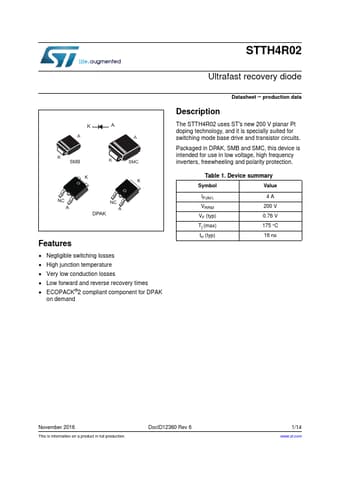

Datasheet Preview: STTH4R02 📥 Download PDF (505.25kb)
Page 2 of STTH4R02 Page 3 of STTH4R02
