STTH4R02-Y Datasheet, Diode, STMicroelectronics

STTH4R02-Y Features

  • Diode
  • Very low conduction losses
  • Negligible switching losses
  • Low forward and reverse recovery times
  • High junction temperature
  • PPAP capable

PDF File Details

Part number:

STTH4R02-Y

Manufacturer:

STMicroelectronics ↗

File Size:

444.70kb

Download:

📄 Datasheet

Description:

Automotive ultrafast recovery diode. This device uses ST's new 200 V planar Pt doping technology, and it is especially suited for switching mode base drive and transistor

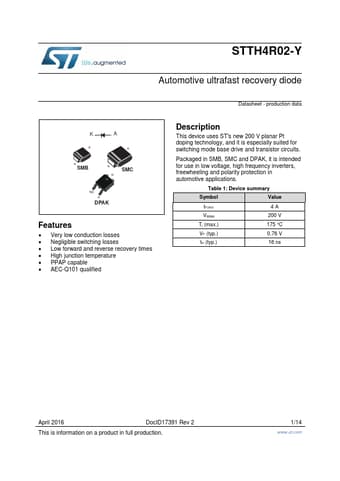

Datasheet Preview: STTH4R02-Y 📥 Download PDF (444.70kb)
Page 2 of STTH4R02-Y Page 3 of STTH4R02-Y

STTH4R02-Y Application

  • Applications Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max.) VF (typ.) trr (typ.) 4A 200 V 175 °C 0.76 V 16 ns April 2016 DocID17
