STG8209 Datasheet (SamHop Microelectronics) - Dual N-Channel Enhancement Mode Field Effect Transistor

STG8209, Dual N-Channel Enhancement Mode Field Effect Transistor

www.DataSheet4U.com S T G 8209 S amHop Microelectronics C orp.

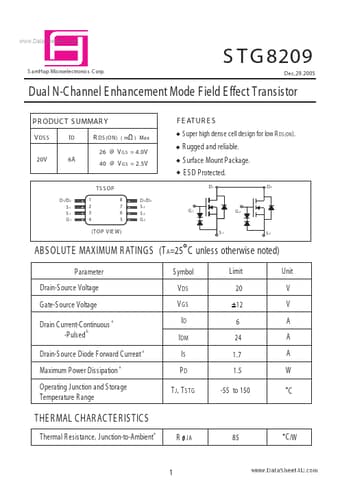

Dec,29.2005 Dual N-C hannel E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 20V F E AT UR E S ( mW ) Max ID 6A R DS (ON) S uper high dense cell design for low R DS (ON ).

26 @ V G S = 4.0V 40 @ V G S = 2.5V R ugged and reliable.

S urface Mount P ackage.

E S D P rotected.

D1 D2 T S S OP D 1/D 2 S1 S1 G1 1 2 3 4 8 7 6 5 D 1/D 2 S2 S2 G2 G1 G2 (T OP V IE W) S1 S2 ABS OLUTE MAXIMUM R ATINGS (T A=25 C
