STG200G65FD8AG - IGBT

Product Overview

STMicroelectronics

📥 Download Datasheet

STG200G65FD8AG IGBT by STMicroelectronics - Datasheet Preview — Datasheet preview – STG200G65FD8AG

Datasheet Details

Part number	STG200G65FD8AG
Manufacturer	STMicroelectronics
File Size	500.45 KB
Description	IGBT
Datasheet	STG200G65FD8AG Datasheet
Additional preview pages of the STG200G65FD8AG datasheet.

Product details

Description

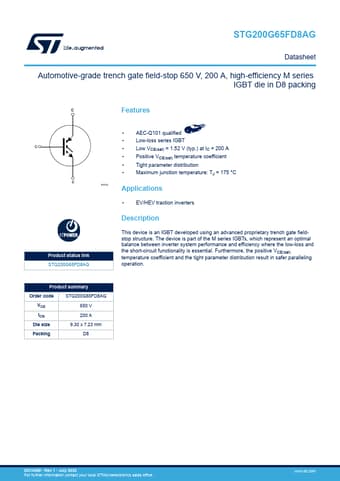

This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure.

Features

G E EGCD Product status link STG200G65FD8AG.
AEC-Q101 qualified.
Low-loss series IGBT.
Low VCE(sat) = 1.52 V (typ. ) at IC = 200 A.
Positive VCE(sat) temperature coefficient.
Tight parameter distribution.
Maximum junction temperature: TJ = 175 °C.
