STG15M120F3D8 - IGBT

STG15M120F3D8 Description

STG15M120F3D8 Datasheet 1200 V, 15 A trench gate field‑stop M series low‑loss IGBT die in D8 packing C G .
This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure.

STG15M120F3D8 Features

* 10 μs of short-circuit withstand time
* Low VCE(sat) = 1.85 V (typ. ) at IC = 15 A
* Positive VCE(sat) temperature coefficient
* Tight parameter distribution

STG15M120F3D8 Applications

* E
* Motor control EGCD
* Industrial drives
* PFC
* UPS
* Solar

📥 Download Datasheet

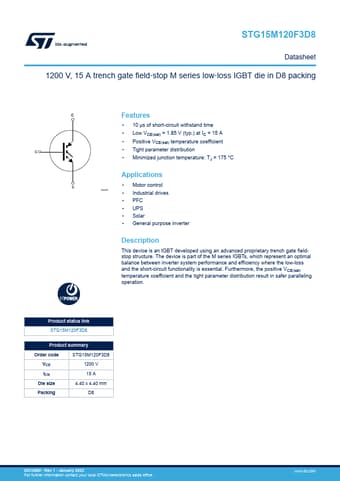

Preview of STG15M120F3D8 PDF
datasheet Preview Page 2 datasheet Preview Page 3
