STG1218

a quad channel analog switch

STG1218 Features

* Wide operating voltage range

* Total voltage: 2.7 V to 15.5 V

* Positive supply: 2.7 V to 5.5 V

* Negative supply: down to -12 V

* Break before make feature

* Quad channel with one control pin for all switches

* Inhibit pin to set the swicthe

STG1218 General Description

The STG1218 is a quad channel analog switch (SPDT), which is able to accommodate with positive and negative voltages. Each channel has an independent STG1218 selection pin, and a common inhibit pin. Thanks to its large operating voltage range 1S1 4S1 and low Ron, this switch can fit many appl.

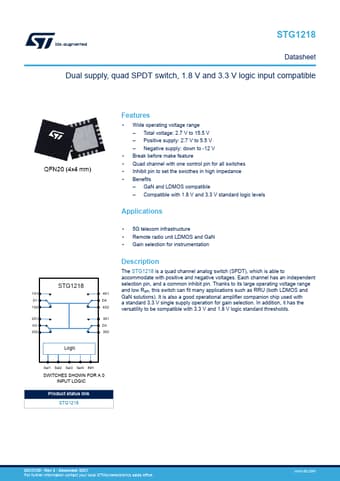

STG1218 Datasheet (1.62 MB)

Preview of STG1218 PDF

Datasheet Details

Part number:

STG1218

Manufacturer:

STMicroelectronics ↗

File Size:

1.62 MB

Description:

A quad channel analog switch.
