STG8810 - Dual N-Channel Enhancement Mode Field Effect Transistor

Product Overview

SamHop Microelectronics

📥 Download Datasheet

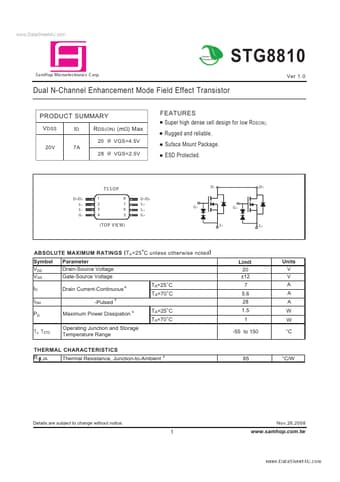

STG8810 Dual N-Channel Enhancement Mode Field Effect Transistor by SamHop Microelectronics - Datasheet Preview — Datasheet preview – STG8810

Datasheet Details

Part number	STG8810
Manufacturer	SamHop Microelectronics
File Size	220.80 KB
Description	Dual N-Channel Enhancement Mode Field Effect Transistor
Datasheet	STG8810 Datasheet
Additional preview pages of the STG8810 datasheet.

Product details

Features

Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ESD Protected. ID 7A R DS(ON) (m Ω) Max 20 @ VGS=4.5V 28 @ VGS=2.5V T S S OP D 1/D 2 S1 S1 G1 1 2 3 4 8 7 6 5 D 1/D 2 S2 S2 G2 D1 D2 G1 G2 (T OP V IE W) S1 S2.
