KM732V696L, KM732V696 - 64Kx32-Bit Synchronous Pipelined Burst SRAM

KM732V696L Description

PRELIMINARY KM732V696/L Document Title 64Kx32-Bit Synchronous Pipelined Burst SRAM, 3.3V Power, 2.5V or 3.3V I/O Datasheets for 100TQFP 64Kx32 Synchr.
The KM732V696/L is a 2,097,152 bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC ba.

KM732V696L Features

* Synchronous Operation. 2 Stage Pipelined operation with 4 Burst. On-Chip Address Counter. Self-Timed Write Cycle. On-Chi

KM732V696L Applications

* GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous. Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals. Burst cycle can be initiated with either the address

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KM732V696L, KM732V696. Please refer to the document for exact specifications by model.

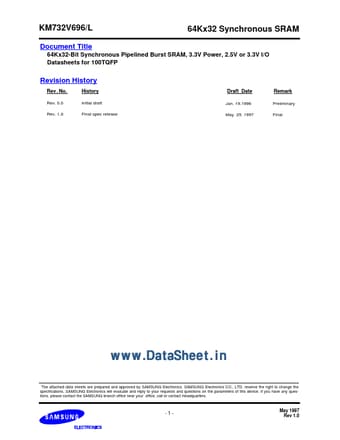

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KM732V696L, KM732V696
Manufacturer
Samsung Semiconductor
File Size
436.77 KB
Datasheet
KM732V696_SamsungSemiconductor.pdf
Description
64Kx32-Bit Synchronous Pipelined Burst SRAM
Note
This datasheet PDF includes multiple part numbers: KM732V696L, KM732V696.
Please refer to the document for exact specifications by model.
