K4M56323PG-C, K4M56323PG-F 2M x 32Bit x 4 Banks Mobile SDRAM

Samsung semiconductor

Description

K4M56323PG-F(H)E/G/C/F 2M x 32Bit x 4 Banks Mobile SDRAM in 90FBGA .
The K4M56323PG is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 32 bits, fabricated with SAMSUNG’s high.

📥 Download Datasheet

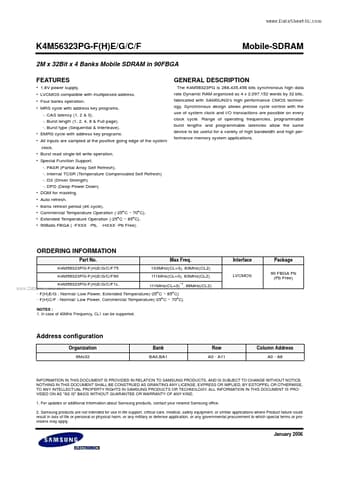

K4M56323PG-C Datasheet Preview — This datasheet PDF includes multiple part numbers: K4M56323PG-C, K4M56323PG-F. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: K4M56323PG-C, K4M56323PG-F
Manufacturer: Samsung semiconductor
File Size: 184.11 KB
Datasheet: K4M56323PG-F_Samsungsemiconductor.pdf
Description: 2M x 32Bit x 4 Banks Mobile SDRAM
Note: This datasheet PDF includes multiple part numbers: K4M56323PG-C, K4M56323PG-F.
Please refer to the document for exact specifications by model.

Features

* 1.8V power supply.
* LVCMOS compatible with multiplexed address.
* Four banks operation.
* MRS cycle with address key programs. -. CAS latency (1, 2 & 3). -. Burst length (1, 2, 4, 8 & Full page). -. Burst type (Sequential & Interleave).
* EMRS cycle with ad

Applications

* ORDERING INFORMATION Part No. K4M56323PG-F(H)E/G/C/F75 K4M56323PG-F(H)E/G/C/F90 Max Freq. 133MHz(CL=3), 83MHz(CL2) 111MHz(CL=3), 83MHz(CL2) LVCMOS 90 FBGA Pb (Pb Free) Interface Package K4M56323PG-F(H)E/G/C/F1L 111MHz(CL=3)
* 1, 66MHz(CL2) www. DataSheet4U. com - F(H)E/G : Normal/ Low Power, Exte
