K4S510432M Datasheet - Samsung semiconductor

K4S510432M, 512Mbit SDRAM 32M x 4bit x 4 Banks Synchronous DRAM LVTTL

K4S510432M Preliminary CMOS SDRAM 512Mbit SDRAM 32M x 4bit x 4 Banks Synchronous DRAM LVTTL www.DataSheet4U.com Revision 0.2 Dec.2001 Samsung El.
The K4S510432M is 536,870,912 bits synchronous high data rate Dynamic RAM organized as 4 x 33,554,432 words by 4 bits, fabricated with SAMSUNG's high.

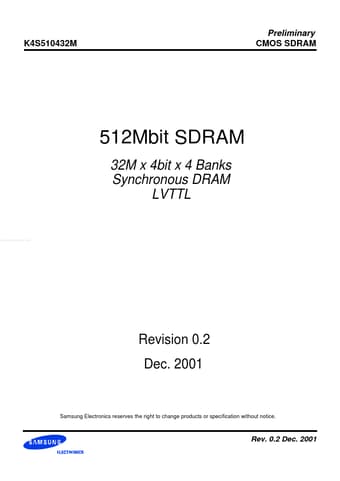

datasheet Preview Page 1 from Datasheet4u.com

K4S510432M_Samsungsemiconductor.pdf

K4S510432M Datasheet Preview — Preview of K4S510432M PDF

Datasheet Details

Part number:

K4S510432M

Manufacturer:

Samsung semiconductor

File Size:

104.04 KB

Description:

512Mbit SDRAM 32M x 4bit x 4 Banks Synchronous DRAM LVTTL

Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are

Applications

* ORDERING INFORMATION Max Freq. 133MHz(CL=3) 100MHz(CL=2) 100MHz(CL=3) LVTTL Interface Package 54pin TSOP(II) FUNCTIONAL BLOCK DIAGRAM I/O Control LWE Data Input Register LDQM Bank Select 32M x 4 32M x 4 32M x 4 32M x 4 Refresh Counter Output Buffer Row Decoder Sense AMP Row Buffer DQi
