2SA1294 - Silicon PNP Transistor

Datasheet Summary

Description

Package The 2SA1294 is a PNP transistor of 230 V,

15 A.

The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.

Features

  • Complementary to 2SC3263.
  • LAPT (Linear Amplifier Power Transistor).
  • High Transition Frequency.
  • Bare Lead Frame: Pb-free (RoHS Compliant).
  • VCEO----------------------------------------------------.
  • 230 V.
  • IC---------------------------------------------------------.
  • 15 A.
  • fT-------------------------------------------------------35 MHz.
  • PC --------------------------------------------------------130 W.

📥 Download Datasheet

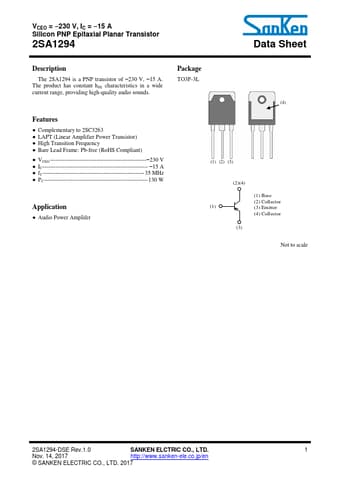

Datasheet preview – 2SA1294

Datasheet Details

Part number 2SA1294
Manufacturer Sanken electric
File Size 610.19 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SA1294 Datasheet
