2SA1292 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • Low saturation voltage.
  • Excellent dependence of hFE on current.
  • Fast switching time. ( ) : 2SA1292 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature VCBO VCEO VEBO IC ICP PC Tj Tstg Electrical Characteristics at Ta = 25˚C Tc=25˚C Conditions Parameter Symbol Condit.

📥 Download Datasheet

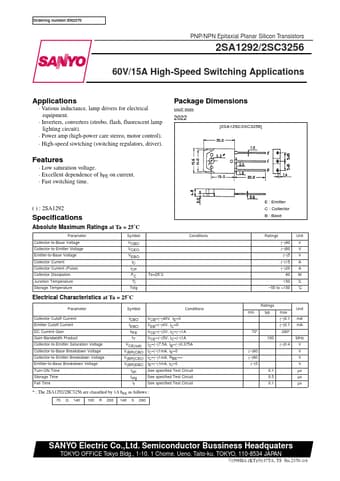

Datasheet preview – 2SA1292

Datasheet Details

Part number 2SA1292
Manufacturer Sanyo Semicon Device
File Size 97.10 KB
Description PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SA1292 Datasheet
Additional preview pages of the 2SA1292 datasheet.

📁 Similar Datasheet

  • 2SA1292 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1292 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1290 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1290 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1291 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1291 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1293 - TRANSISTOR (Toshiba Semiconductor)
  • 2SA1293 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1293 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1294 - Silicon PNP Transistor (Sanken electric)
Other Datasheets by Sanyo Semicon Device
  • 2SA1290 - PNP/NPN Transistors
  • 2SA1291 - PNP/NPN Transistors
  • 2SA1207 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1208 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1209 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1246 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1248 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1249 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text
Ordering number:EN2370 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1292/2SC3256 60V/15A High-Speed Switching Applications Applications · Various inductance, lamp drivers for electrical equipment. · Inverters, converters (strobo, flash, fluorescent lamp lighting circuit). · Power amp (high-power care stereo, motor control). · High-speed siwtching (switching regulators, driver). Package Dimensions unit:mm 2022 [2SA1292/2SC3256] Features · Low saturation voltage. · Excellent dependence of hFE on current. · Fast switching time.
