2SA1290 - PNP/NPN Transistors

Datasheet Summary

Features

  • Low saturation voltage.
  • Excellent current dependence of hFE.
  • Short switching time. ( ) : 2SA1290 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature VCBO VCEO VEBO IC ICP PC Tj Tstg Electrical Characteristics at Ta = 25˚C Tc=25˚C Conditions Parameter Symbol Conditio.

📥 Download Datasheet

Datasheet preview – 2SA1290

Datasheet Details

Part number 2SA1290
Manufacturer Sanyo Semicon Device
File Size 38.61 KB
Description PNP/NPN Transistors
Datasheet download datasheet 2SA1290 Datasheet
Additional preview pages of the 2SA1290 datasheet.

📁 Similar Datasheet

  • 2SA1290 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1290 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1291 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1291 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1292 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1292 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1293 - TRANSISTOR (Toshiba Semiconductor)
  • 2SA1293 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1293 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA1294 - Silicon PNP Transistor (Sanken electric)
Other Datasheets by Sanyo Semicon Device
  • 2SA1291 - PNP/NPN Transistors
  • 2SA1292 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1207 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1208 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1209 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1246 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1248 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA1249 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

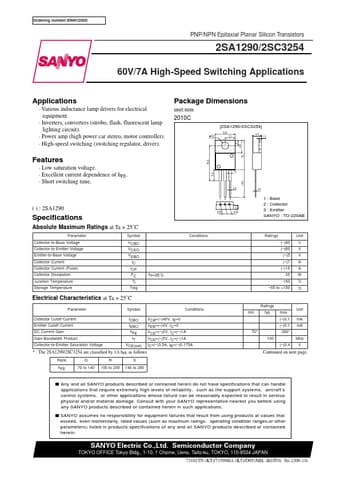

Ordering number:ENN1200D PNP/NPN Epitaxial Planar Silicon Transistors 2SA1290/2SC3254 60V/7A High-Speed Switching Applications Applications · Various inductance lamp drivers for electrical equipment. · Inverters, converters (strobo, flash, fluorescent lamp lighting circuit). · Power amp (high power car stereo, motor controller). · High-speed switching (switching regulator, driver). Package Dimensions unit:mm 2010C [2SA1290/2SC3254] 10.2 3.6 5.1 4.5 1.3 2.7 6.3 15.1 Features · Low saturation voltage. · Excellent current dependence of hFE. · Short switching time.
