2SA1296 - Silicon PNP Epitaxial Type Transistor

Toshiba Semiconductor

Datasheet Details

Part number	2SA1296
Manufacturer	Toshiba Semiconductor
File Size	200.86 KB
Description	Silicon PNP Epitaxial Type Transistor
Datasheet	2SA1296 Datasheet

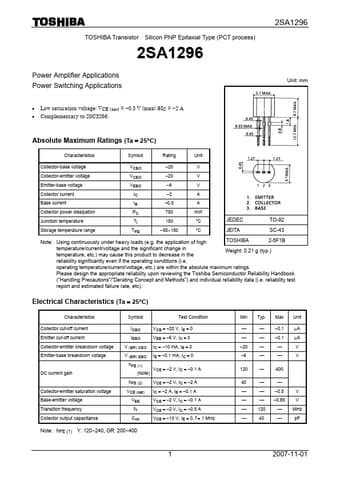

Additional preview pages of the 2SA1296 datasheet.

📁 Similar Datasheet

2SA1290 - PNP/NPN Transistors (Sanyo Semicon Device)
2SA1290 - SILICON POWER TRANSISTOR (SavantIC)
2SA1290 - POWER TRANSISTOR (Inchange Semiconductor)
2SA1291 - PNP/NPN Transistors (Sanyo Semicon Device)
2SA1291 - SILICON POWER TRANSISTOR (SavantIC)
2SA1291 - POWER TRANSISTOR (Inchange Semiconductor)
2SA1292 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SA1292 - SILICON POWER TRANSISTOR (SavantIC)
2SA1292 - POWER TRANSISTOR (Inchange Semiconductor)
2SA1293 - SILICON POWER TRANSISTOR (SavantIC)

Other Datasheets by Toshiba Semiconductor

2SA1293 - TRANSISTOR
2SA1297 - Silicon PNP Epitaxial Type Transistor
2SA1298 - Silicon PNP Transistor
2SA1200 - SILICON PNP TRIPLE DIFFUSED TRANSISTOR
2SA1201 - Silicon PNP Transistor
2SA1202 - Silicon PNP Transistor
2SA1203 - Silicon PNP Transistor
2SA1213 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1296 Power Amplifier Applications Power Switching Applications 2SA1296 Unit: mm • Low saturation voltage: VCE (sat) = −0.5 V (max) @IC = −2 A • Complementary to 2SC3266. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO −20 V Collector-emitter voltage VCEO −20 V Emitter-base voltage VEBO −6 V Collector current IC −2 A Base current IB −0.5 A Collector power dissipation Junction temperature Storage temperature range PC 750 mW Tj 150 °C Tstg −55~150 °C JEDEC JEITA TO-92 SC-43 Note: Using continuously under heavy loads (e.g. the application of high TOSHIBA 2-5F1B temperature/current/voltage and the significant change in temperature, etc.

Published: Mar 22, 2005 |
