2SC4460 - NPN Triple Diffused Planar Silicon Transistor

Datasheet Summary

Features

  • High breakdown voltage, high reliability.
  • Fast switching speed.
  • Wide ASO.
  • Adoption of MBIT process.
  • Micaless package facilitating mounting. Package Dimensions unit:mm 2039D [2SC4460] 3.4 16.0 5.0 8.0 5.6 3.1 21.0 22.0 4.0 2.8 2.0 20.4 1.0 2.0 0.6 1 2 3 3.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Col.

📥 Download Datasheet

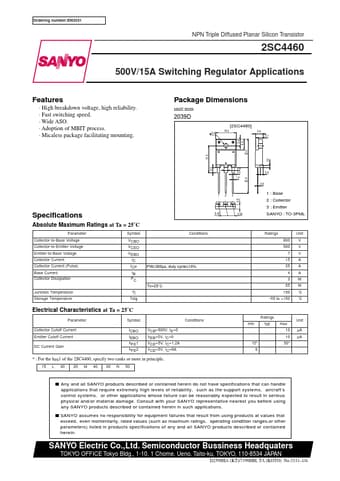

Datasheet preview – 2SC4460
