2SB507 Datasheet, Transistors, SavantIC

PDF File Details

Part number:

2SB507

Manufacturer:

SavantIC

File Size:

97.45kb

Download:

📄 Datasheet

Description:

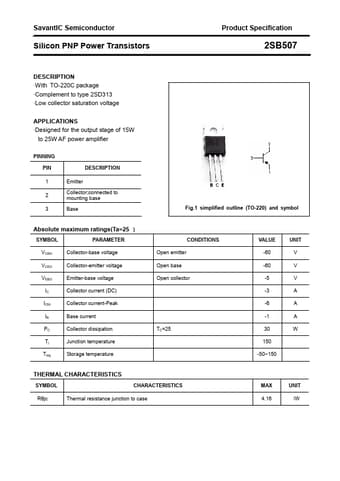

Silicon pnp power transistors.

With TO-220C package

Complement to type 2SD313

Low collector saturation voltage APPLICATIONS

Des

2SB507 Application

• Applications
• Designed for the output stage of 15W to 25W AF power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to

TAGS

2SB507

SavantIC
