2SC2123 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC2123

Datasheet Details

Part number 2SC2123
Manufacturer SavantIC
File Size 135.29 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2123 Datasheet
Additional preview pages of the 2SC2123 datasheet.

Product details

Description

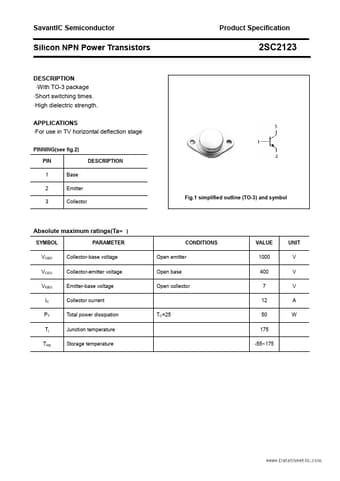

With TO-3 package Short switching times. High dielectric strength. For use in TV horizontal deflection stage PINNING(see fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Ope
