HFP11N80Z 800V N-Channel MOSFET

HFP11N80Z Description

HFP11N80Z_HFS11N80Z Oct 2016 HFP11N80Z / HFS11N80Z 800V N-Channel MOSFET .

HFP11N80Z Features

* ‰ Superior Avalanche Rugged Technology ‰ Robust Gate Oxide Technology ‰ Very Low Intrinsic Capacitances ‰ Excellent Switching Characteristics ‰ 100% Avalanche Tested ‰ RoHS Compliant ‰ Built-in ESD Diode Key Parameters Parameter BVDSS ID RDS(on), Typ Qg, Typ Value 800 11 0.78 74 HFP11N80Z TO-220

📥 Download Datasheet

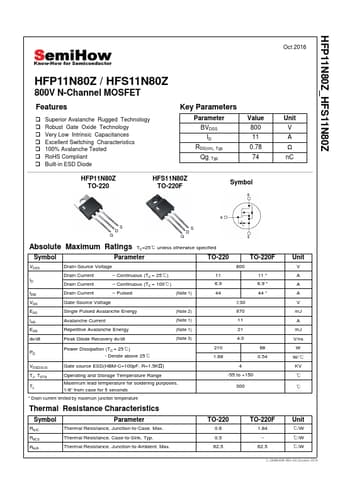

Preview of HFP11N80Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HFP11N80Z
Manufacturer
SemiHow
File Size
263.56 KB
Datasheet
HFP11N80Z-SemiHow.pdf
Description
800V N-Channel MOSFET
