HFP4N50 - N-Channel MOSFET

Product Overview

SemiHow

Part number	HFP4N50
Manufacturer	SemiHow
File Size	675.91 KB
Description	N-Channel MOSFET
Datasheet	HFP4N50 Datasheet

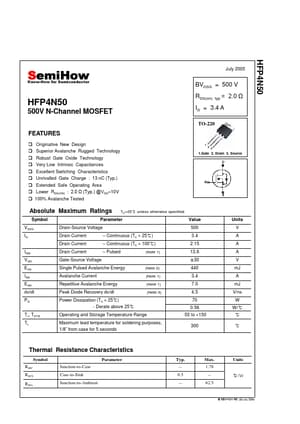

Additional preview pages of the HFP4N50 datasheet.

 Originative New Design  Superior Avalanche Rugged Technology  Robust Gate Oxide Technology  Very Low Intrinsic Capacitances  Excellent Switching Characteristics  Unrivalled Gate Charge : 13 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 2.0 Ω (Typ. ) @VGS=10V  100% Avalanche Tested TO-220 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv/dt Drain-Source Voltage Drain Current.
