HFP4N60F - 600V N-Channel MOSFET

Product Overview

SemiHow

Part number	HFP4N60F
Manufacturer	SemiHow
File Size	197.10 KB
Description	600V N-Channel MOSFET
Datasheet	HFP4N60F Datasheet

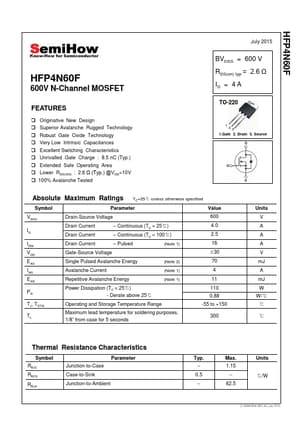

Additional preview pages of the HFP4N60F datasheet.

Originative New Design Superior Avalanche Rugged Technology Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 8.5 nC (Typ. ) Extended Safe Operating Area Lower RDS(ON) : 2.6 ȍ7S#9GS=10V 100% Avalanche Tested BVDSS = 600 V RDS(on) typ ȍ ID = 4 A TO-220 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR.
