BUZ330 Datasheet - Siemens Semiconductor Group

BUZ330 Power Transistor

BUZ 330 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 330 VDS 500 V ID 9.5 A RDS(on) 0.6 Ω Package TO-218 AA Ordering Code C67078-S3105-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 9.5 Unit A ID IDpuls 38 TC = 28 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse IAR EAR EAS 9.5 1.

BUZ330_SiemensSemiconductorGroup.pdf

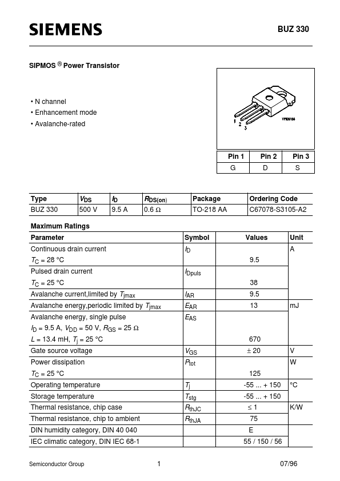

Preview of BUZ330 PDF
BUZ330 Datasheet Preview Page 2 BUZ330 Datasheet Preview Page 3

Datasheet Details

Part number:

BUZ330

Manufacturer:

Siemens Semiconductor Group

File Size:

218.41 KB

Description:

Power transistor.
