BUZ334 Datasheet - Siemens Semiconductor Group

BUZ334 Power Transistor

www.DataSheet4U.com BUZ 334 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 334 VDS 600 V ID 12 A RDS(on) 0.5 Ω Package TO-218 AA Ordering Code C67078-S3130-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 12 Unit A ID IDpuls 48 TC = 26 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse .

BUZ334_SiemensSemiconductorGroup.pdf

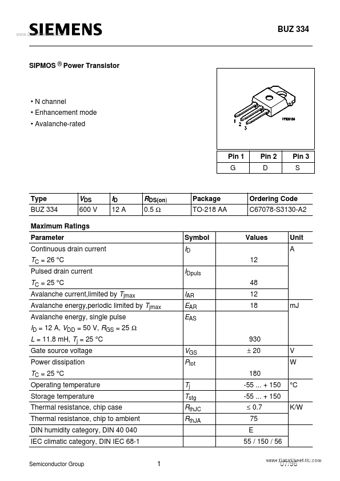

Preview of BUZ334 PDF
BUZ334 Datasheet Preview Page 2 BUZ334 Datasheet Preview Page 3

Datasheet Details

Part number:

BUZ334

Manufacturer:

Siemens Semiconductor Group

File Size:

181.77 KB

Description:

Power transistor.
