BUZ338 - Power Transistor

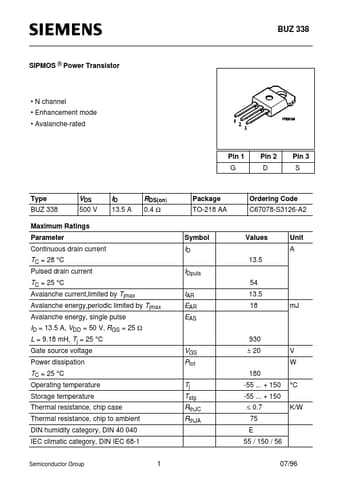

BUZ 338 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 338 VDS 500 V ID 13.5 A RDS(on) 0.4 Ω Package TO-218 AA Ordering Code C67078-S3126-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 13.5 Unit A ID IDpuls 54 TC = 28 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse IAR EAR EAS 13.
