BUZ331 Datasheet - Siemens Semiconductor Group

BUZ331 Power Transistor

BUZ 331 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 331 VDS 500 V ID 8A RDS(on) 0.8 Ω Package TO-218 AA Ordering Code C67078-S3114-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 8 Unit A ID IDpuls 32 TC = 35 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse IAR EAR EAS 8 13 mJ I.

BUZ331_SiemensSemiconductorGroup.pdf

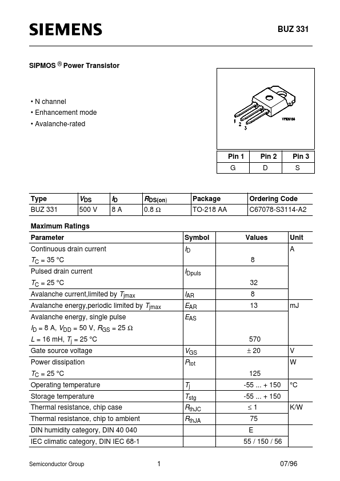

Preview of BUZ331 PDF
BUZ331 Datasheet Preview Page 2 BUZ331 Datasheet Preview Page 3

Datasheet Details

Part number:

BUZ331

Manufacturer:

Siemens Semiconductor Group

File Size:

212.20 KB

Description:

Power transistor.
