SVGQ109R5NAD 100V N-CHANNEL MOSFET

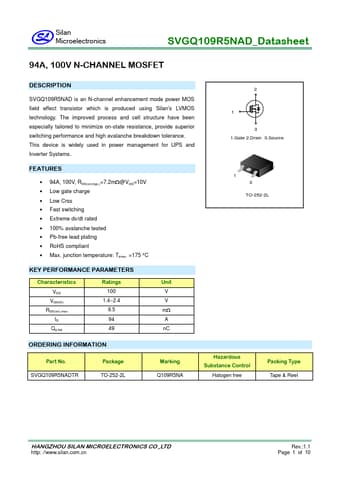

SVGQ109R5NAD is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown.

SVGQ109R5NAD Features

* 94A, 100V, RDS(on)(typ.)=7.2m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant

* Max. junction temperature: Tjmax。=175 ºC KEY PERFORMANCE PARAMETERS Characteristics VD
