SVS7N70MJD2, SVS7N70FD2 700V SUPER JUNCTION MOS POWER TRANSISTOR

SVS7N70MJD2 Description

Silan Microelectronics SVS7N70F/D/MJ/S/D2_Datasheet 7A, 700V SUPER JUNCTION MOS POWER TRANSISTOR .
SVS7N70F(D)(MJ)(S)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MOS technology.

SVS7N70MJD2 Features

* 2 1 3 1.Gate 2.Drain 3.Source 1 3 TO-252-2L 1 3 TO-263-2L
* 7A, 700V, RDS(on)(typ. )=0.52@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Periodic avalanche rated
* Extreme dv/dt rated
* High peak current capability 1 23 TO-251J-3L 1 23 TO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVS7N70MJD2, SVS7N70FD2. Please refer to the document for exact specifications by model.

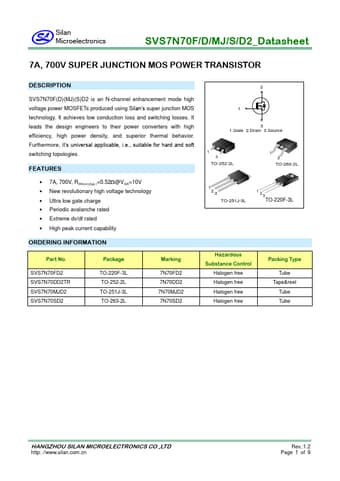

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVS7N70MJD2, SVS7N70FD2
Manufacturer
Silan Microelectronics
File Size
393.31 KB
Datasheet
SVS7N70FD2-SilanMicroelectronics.pdf
Description
700V SUPER JUNCTION MOS POWER TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: SVS7N70MJD2, SVS7N70FD2.
Please refer to the document for exact specifications by model.
