SVS7N70SD2

700V SUPER JUNCTION MOS POWER TRANSISTOR

Silan Microelectronics

SVS7N70SD2 Features

* 2 1 3 1.Gate 2.Drain 3.Source 1 3 TO-252-2L 1 3 TO-263-2L

* 7A, 700V, RDS(on)(typ.)=0.52@VGS=10V

* New revolutionary high voltage technology

* Ultra low gate charge

* Periodic avalanche rated

* Extreme dv/dt rated

* High peak current capability 1 23 TO-251J-3L 1 23 TO

SVS7N70SD2 General Description

SVS7N70F(D)(MJ)(S)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MOS technology. It achieves low conduction loss and switching losses. It leads the design engineers to their power converters with high efficiency, high power density, and superior .

SVS7N70SD2 Datasheet (393.31 KB)

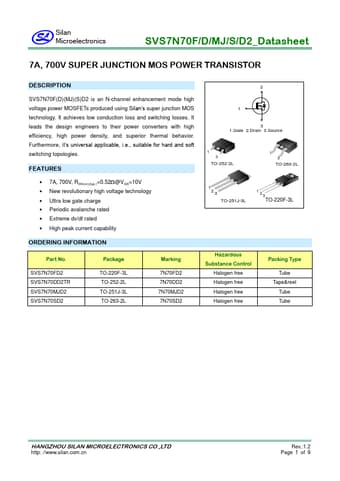

SVS7N70SD2 Datasheet Preview — Preview of SVS7N70SD2 PDF

Datasheet Details

Part number:

SVS7N70SD2

Manufacturer:

Silan Microelectronics

File Size:

393.31 KB

Description:

700v super junction mos power transistor.
