CXG1090EN High Power 2 4 Antenna Switch MMIC with Integrated Control Logic

The CXG1090EN is a high power antenna switch MMIC. This IC is suited to connect Tx/Rx to one of 4 antennas in cellular handset such as PDC. The CXG1090EN has the integrated control logic and can be operated with CMOS input. This IC is designed using the Sony's GaAs J-FET process which enable the CXG.

CXG1090EN Features

* Low insertion loss: 0.30dB (Typ.)@900MHz, 0.40dB (Typ.)@1.5GHz

* Small package: 16-pin VSON

* High power handling: Pl dB: 37dBm

* CMOS compatible input control

* Low bias voltage: VDD = 3.0V Applications 2 × 4 antenna switch for digital cellular telephones s

CXG1090EN_SonyCorporation.pdf

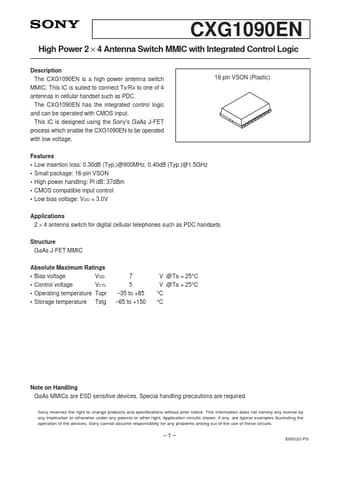

Preview of CXG1090EN PDF
