CXG1090TN Datasheet, Logic, Sony Corporation

CXG1090TN Features

  • Logic
  • Low insertion loss: 0.30dB (Typ.)@900MHz, 0.40dB (Typ.)@1.5GHz
  • Small package: TSSOP-16pin
  • High power handling: PldB: 37dBm
  • CMOS compatible input

PDF File Details

Part number:

CXG1090TN

Manufacturer:

Sony Corporation

File Size:

71.15kb

Download:

📄 Datasheet

Description:

High power 2 x 4 antenna switch mmic with integrated control logic. The CXG1090TN is a high power antenna switch MMIC. The CXG1090TN is suited to connect Tx/Rx to one of 4 antennas in cellular handset

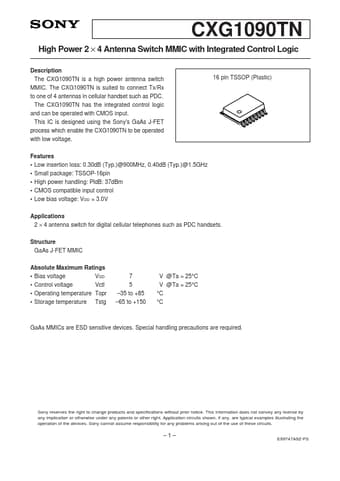

Datasheet Preview: CXG1090TN 📥 Download PDF (71.15kb)
Page 2 of CXG1090TN Page 3 of CXG1090TN

CXG1090TN Application

  • Applications 2 × 4 antenna switch for digital cellular telephones such as PDC handsets. Structure GaAs J-FET MMIC Absolute Maximum Ratings
