CXG1097EN Datasheet, Switch/mixer, Sony Corporation

CXG1097EN Features

  • Switch/mixer
  • Dual mode low noise amplifier with a bypass switch
  • High gain Low noise amplifier high current mode: Gp = 14.5dB (Typ.) Mixer: Gc = 12.0dB (Typ.)
  • Low noise

PDF File Details

Part number:

CXG1097EN

Manufacturer:

Sony Corporation

File Size:

111.60kb

Download:

📄 Datasheet

Description:

Low noise amplifier with bypass switch/mixer. The CXG1097EN is a dual mode low noise amplifier with a bypass switch/ mixer MMIC for Japan CDMA cellular. This IC is designed using

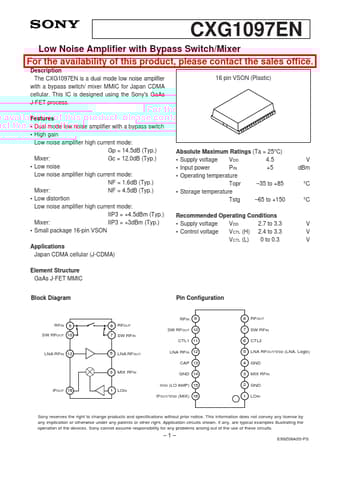

Datasheet Preview: CXG1097EN 📥 Download PDF (111.60kb)
Page 2 of CXG1097EN Page 3 of CXG1097EN

CXG1097EN Application

  • Applications Japan CDMA cellular (J-CDMA) Element Structure GaAs J-FET MMIC Block Diagram Pin Configuration 16 pin VSON (Plastic) Absolute Maximum
