CXG1092N SP5T GSM Triple-Band Antenna Switch

Sony Corporation

CXG1092N Description

CXG1092N SP5T GSM Triple-Band Antenna Switch For the availability of this product, please contact the sales office..
The CXG1092N is a high power antenna MMIC switch for use in triple-band GSM handsets.

CXG1092N Features

* 4 CMOS compatible control lines
* Standby control
* 34.5dBm power handling at 5.0V (GSM900)
* Low second harmonic <
* 36dBm at 34.5dBm

CXG1092N Applications

* Triple-band handsets using combinations of GSM900/DCS1800/PCS1900 and DECT Structure GaAs J-FET MMIC (The Sony JFET process is used for low insertion loss. ) 20 pin SSOP (Plastic) Absolute Maximum Ratings (Ta = 25°C)
* Bias voltage VDD 7
* Control voltage
* Operating temperat

📥 Download Datasheet

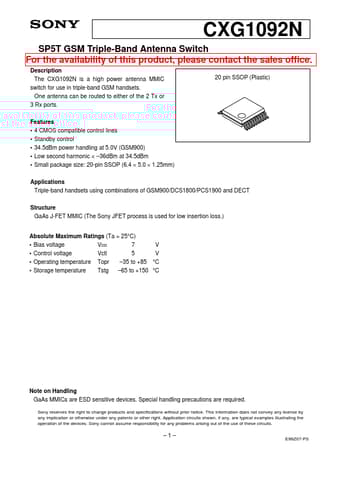

CXG1092N Datasheet Preview — Preview of CXG1092N PDF

Datasheet Details

Part number: CXG1092N
Manufacturer: Sony Corporation
File Size: 68.42 KB
Datasheet: CXG1092N_SonyCorporation.pdf
Description: SP5T GSM Triple-Band Antenna Switch
