2SA1434 - Transistor

TY Semiconductor

📥 Download Datasheet

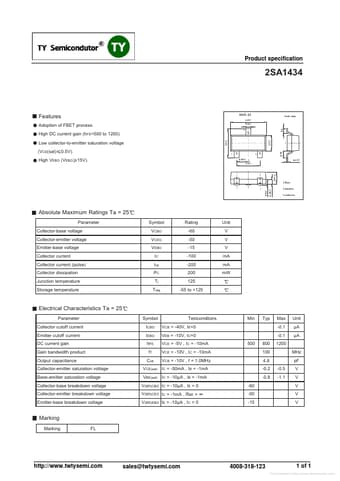

2SA1434 Datasheet Preview — Preview of 2SA1434 PDF

Datasheet Details

Part number	2SA1434
Manufacturer	TY Semiconductor
File Size	88.41 KB
Description	Transistor
Datasheet	2SA1434_TYSemiconductor.pdf

2SA1434 Product details

Features

Adoption of FBET process. High DC current gain (hFE=500 to 1200). +0.1 2.4-0.1 SOT-23 +0.1 2.9-0.1 +0.1 0.4-0.1 Unit: mm Low collector-to-emitter saturation voltage (VCE(sat) 0.5V). High VEBO (VEBO 15V). +0.1 1.3-0.1 1 +0.1 0.95-0.1 +0.1 1.9-0.1 2 0.55 0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dis.
