2SA1954 - Silicon PNP Epitaxial Type Transistor

2SA1954 Description

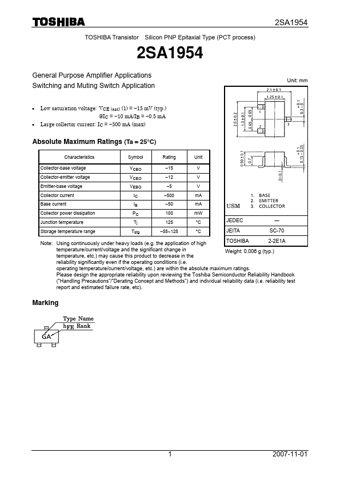

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1954 General Purpose Amplifier Applications Switching and Muting Switch Application 2S.

2SA1954 Applications

* Switching and Muting Switch Application 2SA1954 Unit: mm
* Low saturation voltage: VCE (sat) (1) =
* 15 mV (typ. ) @IC =
* 10 mA/IB =
* 0.5 mA
* Large collector current: IC =
* 500 mA (max) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol R
