2SA1955FV - Silicon PNP Transistor

2SA1955FV Description

2SA1955FV TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1955FV General Purpose Amplifier Applications Switching and Muting Switch Ap.

2SA1955FV Applications

* Switching and Muting Switch Application
* Low saturation voltage: VCE (sat) (1) =
* 15 mV (typ. ) @IC =
* 10 mA/IB =
* 0.5 mA
* Large collector current: IC =
* 400 mA (max) Absolute Maximum Ratings (Ta = 25°C) 1.2±0.05 0.8±0.05 0.4 0.4 0.22±0.05 Unit: mm

📥 Download Datasheet

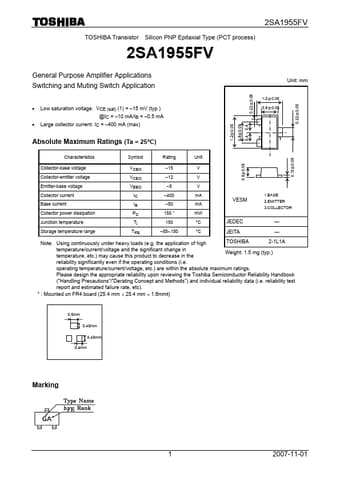

Preview of 2SA1955FV PDF
datasheet Preview Page 2 datasheet Preview Page 3
