2SC2873 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC2873

Datasheet Details

Part number 2SC2873
Manufacturer Toshiba Semiconductor
File Size 174.54 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC2873 Datasheet
Additional preview pages of the 2SC2873 datasheet.

📁 Similar Datasheet

  • 2SC2873 - Silicon NPN Transistor (GME)
  • 2SC2873 - Transistors (AiT Components)
  • 2SC2873 - NPN Transistor (HOTTECH)
  • 2SC2873 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2873 - Silicon PNP Transistor (Kexin)
  • 2SC2873 - NPN Transistor (SeCoS)
  • 2SC2873 - TRANSISTOR (Jin Yu Semiconductor)
  • 2SC2873-G - Transistor (Comchip)
  • 2SC2873-O - NPN Silicon Transistors (MCC)
  • 2SC2873-Y - NPN Silicon Transistors (MCC)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

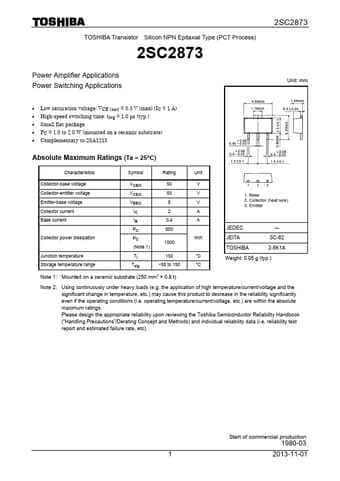

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC2873 Power Amplifier Applications Power Switching Applications 2SC2873 Unit: mm • Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1 A) • High-speed switching time: tstg = 1.0 μs (typ.) • Small flat package • PC = 1.0 to 2.0 W (mounted on a ceramic substrate) • Complementary to 2SA1213 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range VCBO 50 V VCEO 50 V VEBO 5 V IC 2 A IB 0.4 A PC 500 PC mW 1000 (Note 1) Tj 150 °C Tstg −55 to 150 °C JEDEC ― JEITA SC-62 TOSHIBA 2-5K1A Weight: 0.
