SSM3K336R Datasheet - Toshiba Semiconductor

SSM3K336R-ToshibaSemiconductor.pdf

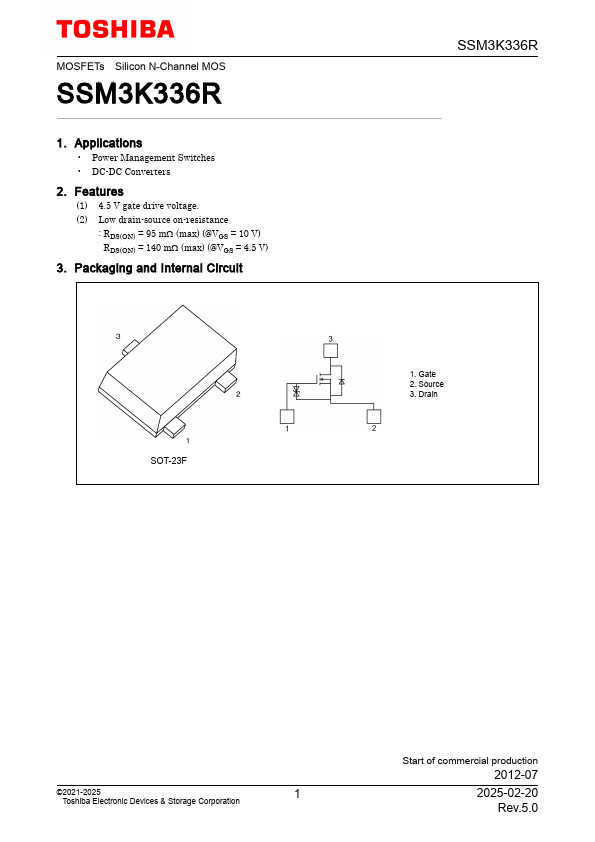

Preview of SSM3K336R PDF

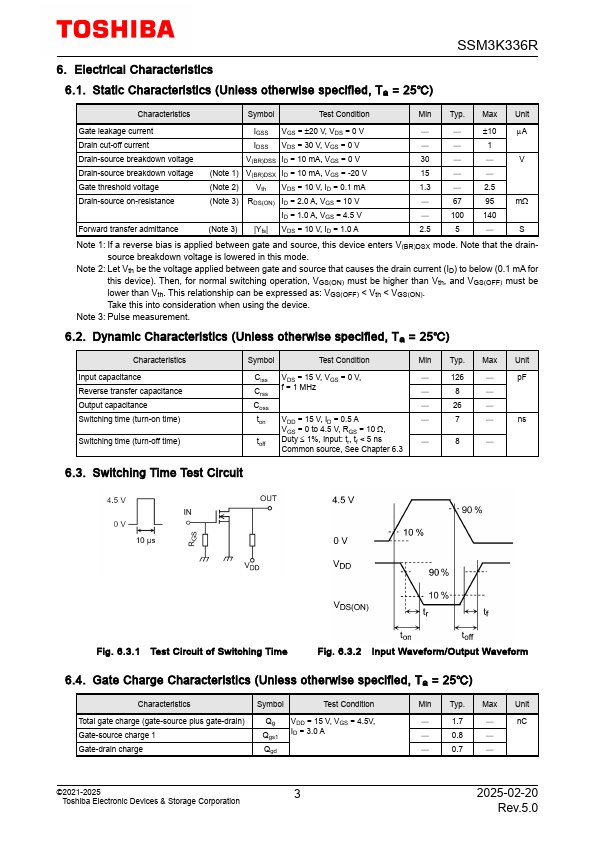

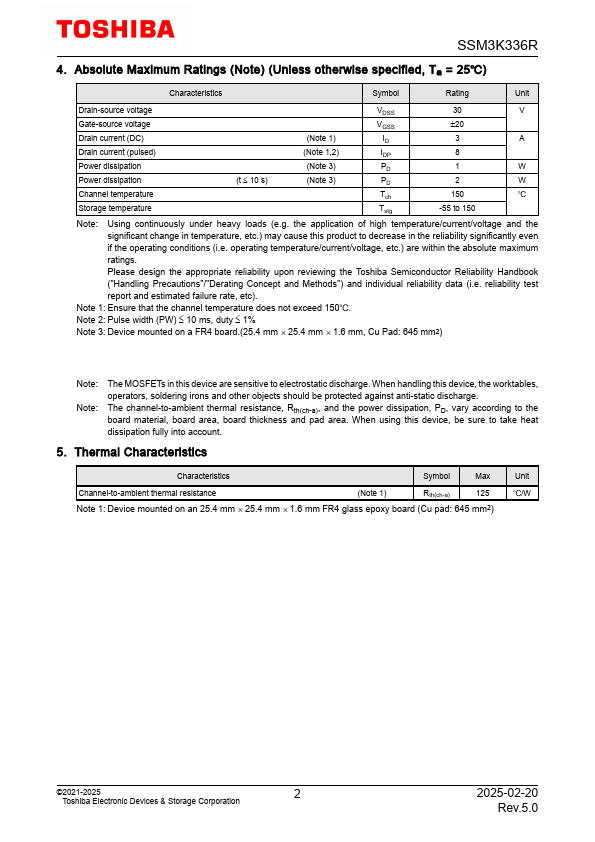

SSM3K336R Datasheet Preview Page 2 SSM3K336R Datasheet Preview Page 3

Datasheet Details

Part number:

SSM3K336R

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

362.06 KB

Description:

Silicon n-channel mosfet.

SSM3K336R, Silicon N-Channel MOSFET

SSM3K336R Features

* (1) 4.5 V gate drive voltage. (2) Low drain-source on-resistance : RDS(ON) = 95 mΩ (max) (@VGS = 10 V) RDS(ON) = 140 mΩ (max) (@VGS = 4.5 V) 3. Packaging and Internal Circuit SOT-23F SSM3K336R 1. Gate 2. Source 3. Drain ©2021-2025 1 Toshiba Electronic Devices & Storage Corporation Start of comm
