SSM3K318T - N-Channel 60V MOSFET

Datasheet Summary

Features

  • Halogen-free According to IEC 61249-2-21 Available.
  • Trench Power MOSFET.
  • 100 % Rg Tested.
  • 100 % UIS Tested.

📥 Download Datasheet

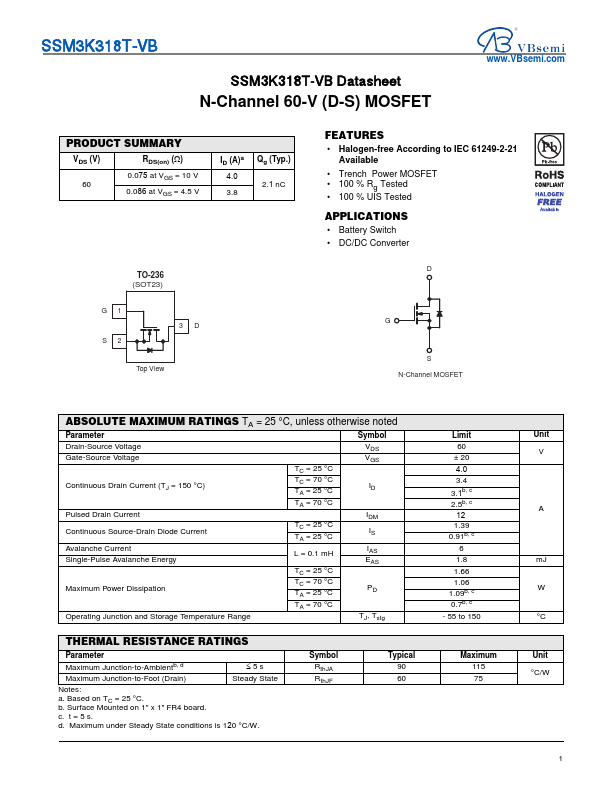

Datasheet preview – SSM3K318T

Datasheet Details

Part number SSM3K318T
Manufacturer VBsemi
File Size 256.20 KB
Description N-Channel 60V MOSFET
Datasheet download datasheet SSM3K318T Datasheet

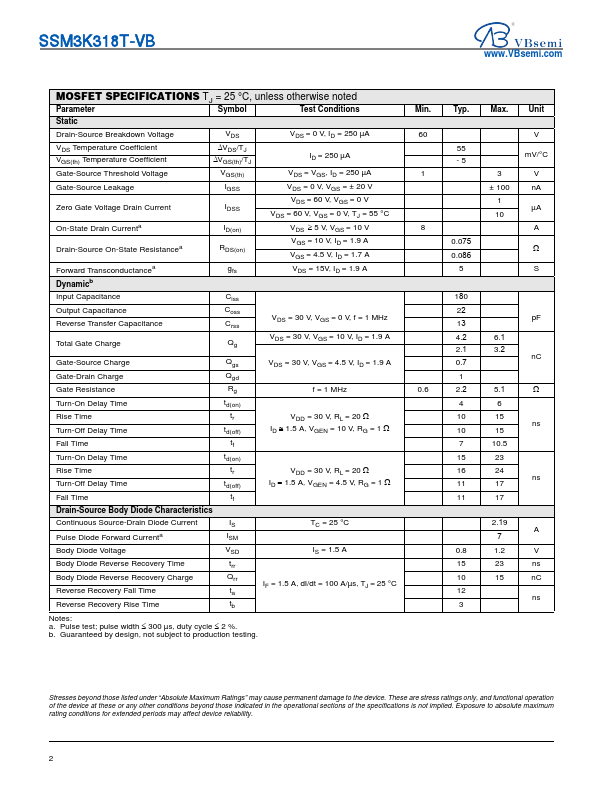

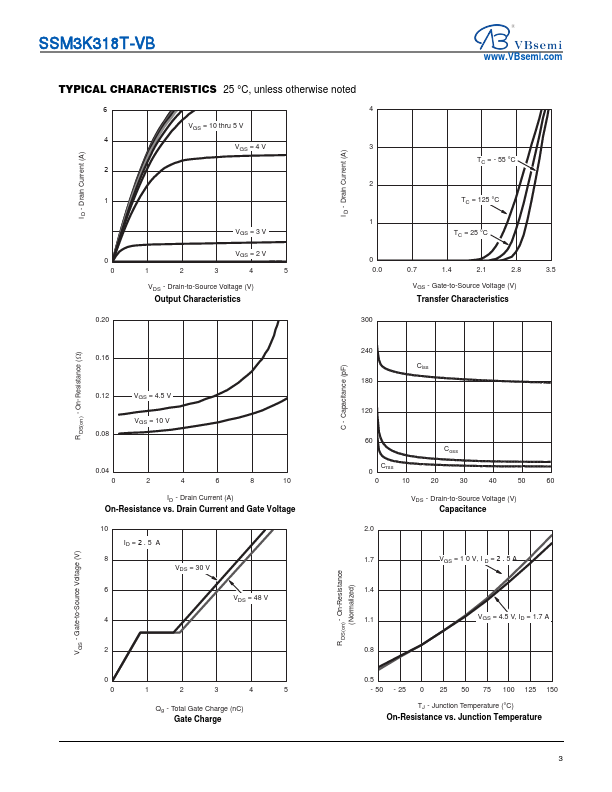

Additional preview pages of the SSM3K318T datasheet.

📁 Similar Datasheet

  • SSM3K318T - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • SSM3K318R - Silicon N-Channel MOSFET (Toshiba)
  • SSM3K310T - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • SSM3K315T - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • SSM3K316T - MOSFET (Toshiba Semiconductor)
  • SSM3K301T - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • SSM3K302T - Power Management Switch Applications (Toshiba Semiconductor)
  • SSM3K303T - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • SSM3K309T - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • SSM3K320T - Silicon N-Channel MOSFET (Toshiba)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text
SSM3K318T-VB SSM3K318T-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.075 at VGS = 10 V 60 0.086 at VGS = 4.5 V ID (A)a 4.0 3.8 Qg (Typ.) 2.
