SSM3K344R - Silicon N-Channel MOSFET

Toshiba

📥 Download Datasheet

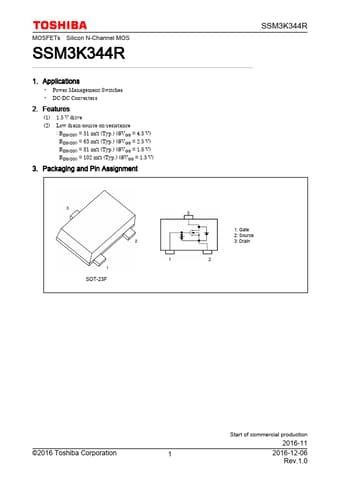

SSM3K344R Datasheet Preview — Preview of SSM3K344R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SSM3K344R
Manufacturer	Toshiba ↗
File Size	370.41 KB
Description	Silicon N-Channel MOSFET
Datasheet	SSM3K344R-Toshiba.pdf

SSM3K344R Product details

Features

(1) 1.5 V drive (2) Low drain-source on-resistance : RDS(ON) = 51 mΩ (Typ. ) (@VGS = 4.5 V) RDS(ON) = 63 mΩ (Typ. ) (@VGS = 2.5 V) RDS(ON) = 81 mΩ (Typ. ) (@VGS = 1.8 V) RDS(ON) = 102 mΩ (Typ. ) (@VGS = 1.5 V) 3. Packaging and Pin Assignment SOT-23F SSM3K344R 1: Gate 2: Source 3: Drain ©2016 Toshiba Corporation 1 Start of commercial production 2016-11 2016-12-06 Rev.1.0 SSM3K344R 4. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Rating Unit.
