TGA2595

9W Power Amplifier

TGA2595 Features

* Frequency Range: 27.5 to 31 GHz

* POUT: 39.5 dBm (PIN = 22 dBm), CW

* PAE: 24 % (PIN = 22 dBm), CW

* Small Signal Gain: 23 dB

* Return Loss: 20 dB

* IM3 @ 33 dBm/tone:

* 30 dBc

* IM5 @ 33 dBm/tone:

* 35 dBc

* Bias: VD = +20 V, IDQ = 280 mA, VG =

TGA2595 General Description

Qorvo’s TGA2595 is a balanced Ka-band power amplifier fabricated on Qorvo’s 0.15 um GaN on SiC process. The balanced configuration supports low return loss and improves robustness into non-ideal loads. Operating from 27.5 to 31 GHz, it achieves 9 W saturated output power, power-added efficiency of 2.

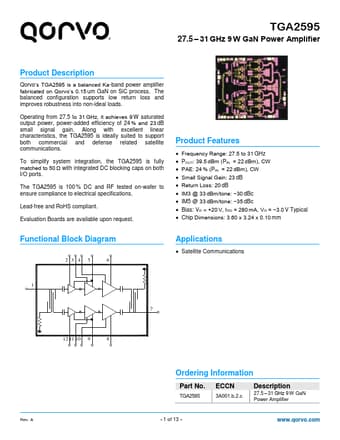

TGA2595 Datasheet (683.02 KB)
