TSF10N65M - N-Channel MOSFET

TSF10N65M Description

TSP10N65M/TSF10N65M TSP10N65M/TSF10N65M 650V N-Channel MOSFET General .
This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology.

TSF10N65M Features

* 10.0A,650V,Max. RDS(on)=1.0Ω @ VGS =10V
* Low gate charge(typical 48nC)
* High ruggedness
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EAR

📥 Download Datasheet

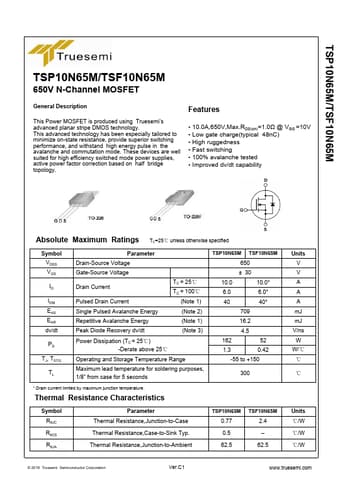

Preview of TSF10N65M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSF10N65M
Manufacturer
Truesemi
File Size
1.22 MB
Datasheet
TSF10N65M-Truesemi.pdf
Description
N-Channel MOSFET
